Topload Cartoner CLM

Topload Cartoner CLM

Viking Masek's topload CLM carton packing machine can be configured for straight-line or right-angle design. Able to close one, two, or three flaps of the cartons, this equipment provides gentle handling of the cartons and products inside.

Boxes of Instant Coffee and Drinks

Topload Cartoning Equipment For All Types of Cartons

Topload carton packing machine available in straight-line or right-angle units to close one, two, or three carton flaps. Gently handles cartons and products inside.

Want a Free Consultation?

Max Speed 200 cpm
Carton Size (Intermittent)
Min 50 mm x 80 mm x 25 mm
Max 225 x 300 x 200 mm

Features

  • One, two, or three flap closing configuration
  • Lock style, hot melt or hot air systems
  • Easy format change over
  • Driven to adapt to random carton flow
  • Servo drives
  • Rugged stainless steel construction
  • Safety guarding
  • Off-the-shelf components
  • Siemens or Allen Bradley controls
  • Speed and glue adjustments through the HMI
  • Excellent accessibility
  • IP54 construction

Specifications

  • Machine Footprint: 1100 mm W x 2800 - 3500 mm L x 2000 mm H
  • Weight: 900 - 1300 kg
  • Air Pressure: 6 bar (15–18 CFM at 90 PSI)
  • Power Supply: 6 - 12kVA

Options

  • Various styles of infeed/outfeed conveyors
  • Straight-line or right-angle construction
  • Damaged carton rejection
  • Different frame sizes to accommodate large carton size range
  • Remote diagnostics
  • Special electronics and voltages
  • IP65 washdown construction

Videos

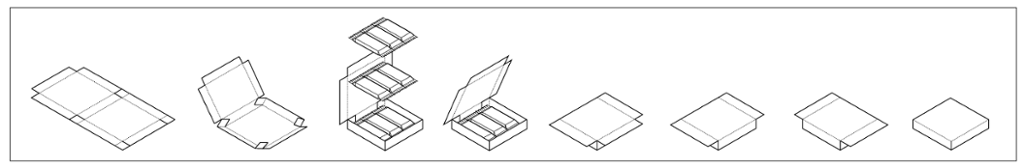

Topload Cartoning Process

Topload Cartoning Process Topload Cartoner CLM Dimensions
