8SQ-285

Fill and Seal Two Bags at One Time at Speeds Up to 100 BPM

Let's Talk

Overview

The Output of Two Machines in One Compact Footprint

The Viking 8SQ-285 is a dual-station automatic rotary premade pouch machine that fills and seals 2 pouches at once, each up to 285 mm wide. Built with two single-lane machines on one compact platform, this powerhouse delivers speeds up to 100 bags per minute and is ideal for a wide range of industries — from food to beverages — seeking to double output without doubling floor space.

Key Features

  • Dual rotary tables fill and seal 2 bags simultaneously
  • Combines the output of two machines in a compact footprint
  • Suitable for a wide variety of industries and product types
  • Ensures consistent pouch quality, seal integrity, and operational efficiency

Specifications

Number of Stations 8
Number of Lanes 2 (2 simplex rotary units)
Maximum Speed Per Minute (dry cycle) 100

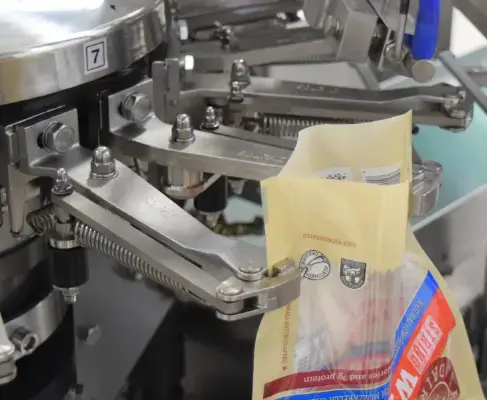

Bag Gripping Range 130-285mm
Maximum Bag Length 420mm (500mm with extender)
Electrical Requirements 3-Phase, 480V, Approx. 10Kw, 60/50Hz
Compressed Air Approx. 900 NL/min, 5~6 kgf/cm2
Specs PDF See Bag Styles Let's Talk

Features

  • Dual rotary units with 8 stations each, one bag per unit
  • Fill and seal 2 bags at once
  • Can accommodate 2 different products at once
  • PLC control with touch screen operation
  • Servo-driven Allen Bradley control platform
  • Highly durable welded steel frame
  • Production parameter memory including gripper size, machine speed, sealing temperature, and filling volume
  • Pouch presence detection – no filling, no sealing
  • Bag deflation with wire guide or push bars
  • Automatic deoxidizer feeding station

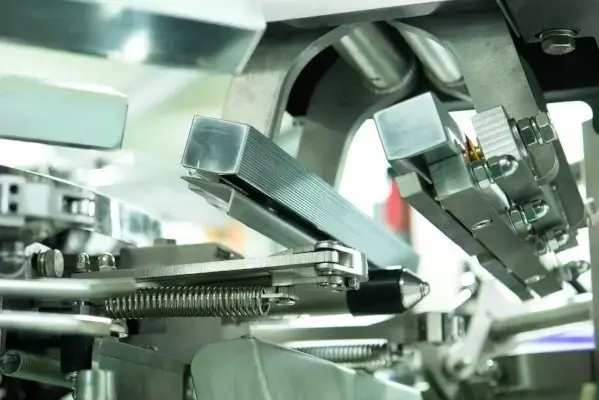

  • Two step sealing process guarantees clean sealing
  • Cooling station for liquid products
  • Intuitive touch screen human interface (HMI)

Max Speed

100 bpm

Bag Size

Min 130 mm W x 120 mm L

Max285 mm W x 420 mm L

Compatible Applications

Candy icon Candy
Cannabis+Food+Beverage icon Cannabis
Food & Beverage
Cannabis+Health+Medical icon Cannabis
Health & Medical
Cereal, Nuts & Snacks icon Cereal, Nuts & Snacks
Cheese icon Cheese
Coffee icon Coffee
Fresh Fruit & Vegetables icon Fresh Fruit & Vegetables
Individual Quick Frozen (IQF) icon Individual Quick Frozen (IQF)
Liquids icon Liquids
Meat, Poultry & Fish icon Meat, Poultry & Fish
Medical Devices & Supplies icon Medical Devices & Supplies
Medical Testing Kits icon Medical Testing Kits
Non-Food icon Non-Food Products
Pasta, Beans & Rice icon Pasta, Beans & Rice
Pet Food & Treats icon Pet Food & Treats
Pills & Capsules icon Pills & Capsules
Powders icon Powders
8SQ-285

Options

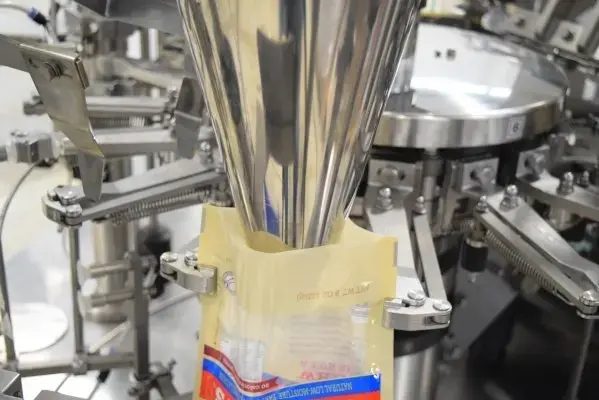

  • Product filling – can be integrated with multi-head scales, volumetric fillers and auger fillers
  • Fully interlocked safety guards
  • Pre Sealing station for liquid or paste
  • Zipper opening device
  • Clean-in-place design
  • Long raised rotary shaft extender for longer bags
  • Extended bag magazine
  • Date coding: emboss, hot stamp, inkjet or thermal transfer
  • Quality control: checkweigher, metal detector, X-ray inspection
  • Dust suction nozzles and dust collector
  • Product settler
  • Bag supporter for heavy fills
  • Ethernet connectivity
  • Washdown structure (IP65 or IP66)
  • Steam or gas flush
  • Rotary running clockwise model
  • Bag rejection system
