CLM Top Load Cartoner

Automatic Top Load Cartoners Close Up to 3 Flaps on Straight-Line and Right-Angle Configurations

Let's Talk

Overview

Package Diverse Products with Automatic Top Load Cartoner (CLM)

Viking Masek’s top load cartoners are versatile, high-performance machines designed to run a variety of carton shapes using single, double, or triple-head operation. Available in straight-line or right-angle configurations, they can close one, two, or three carton flaps while gently handling both cartons and their contents.

Key Features

  • Compatible with a wide range of carton shapes and sizes
  • Single, double, or triple-head operation
  • Available in straight-line and right-angle configurations

Specifications

Machine Footprint 1100 mm W x 2800 - 3500 mm L x 2000 mm H
Weight 900 - 1300 kg
Air Pressure 6 bar (15–18 CFM at 90 PSI)
Power Supply 6 - 12kVA
Specs PDF See Carton Styles Let's Talk

Features

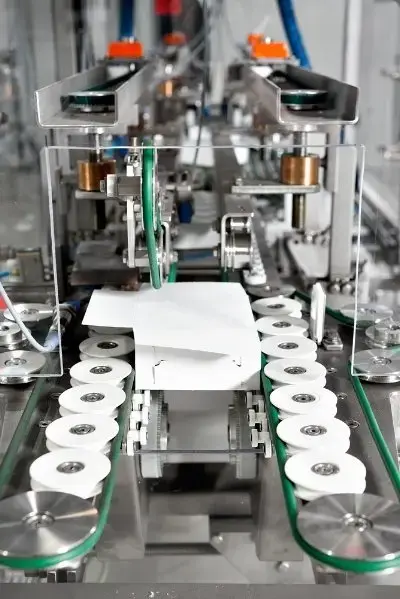

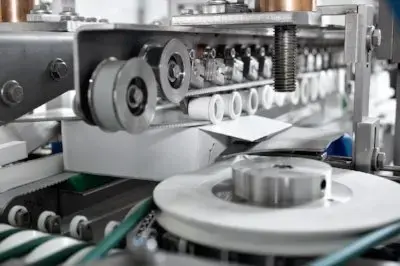

  • One, two, or three flap closing configuration
  • Lock style, hot melt or hot air systems
  • Easy format change over
  • Driven to adapt to random carton flow
  • Servo drives
  • Rugged stainless steel construction
  • Safety guarding
  • Off-the-shelf components
  • Siemens or Allen Bradley controls
  • Speed and glue adjustments through the HMI
  • Excellent accessibility
  • IP54 construction
  • Intuitive touch screen human interface (HMI)

Max Speed

200 cpm

Carton Size

Min 50 mm x 80 mm x 25 mm

Max225 mm x 300 mm x 200 mm

Compatible Applications

Bakery icon Bakery
Candy icon Candy
Cannabis+Food+Beverage icon Cannabis
Food & Beverage
Cannabis+Health+Medical icon Cannabis
Health & Medical
Cereal, Nuts & Snacks icon Cereal, Nuts & Snacks
Cheese icon Cheese
Coffee icon Coffee
Fresh Fruit & Vegetables icon Fresh Fruit & Vegetables
Individual Quick Frozen (IQF) icon Individual Quick Frozen (IQF)
Liquids icon Liquids
Meat, Poultry & Fish icon Meat, Poultry & Fish
Medical Devices & Supplies icon Medical Devices & Supplies
Medical Testing Kits icon Medical Testing Kits
Pasta, Beans & Rice icon Pasta, Beans & Rice
Pet Food & Treats icon Pet Food & Treats
Pills & Capsules icon Pills & Capsules
Powders icon Powders
CLM

Options

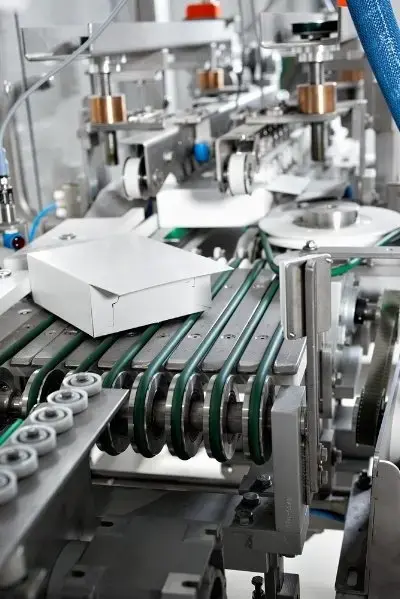

  • Various styles of infeed/outfeed conveyors
  • Straight-line or right-angle construction
  • Damaged carton rejection
  • Different frame sizes to accommodate large carton size range
  • Remote diagnostics
  • Special electronics and voltages
  • IP65 washdown construction
