Stick Packaging Machine ST1200

Stick Pack ST1200

Large Capacity Stick Pack Machine

SPEEDS UP TO 80 CPM

Stick Packaging Packets

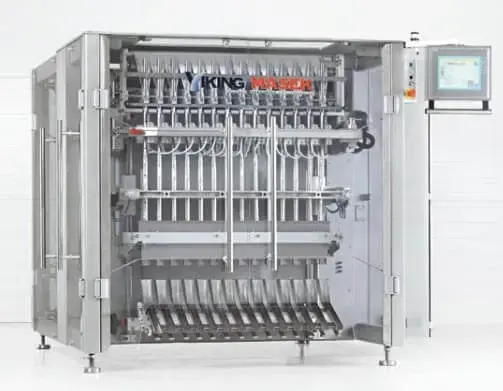

Our Advanced, High-Performance Stick Pack Machine

Able to package up to 20 lanes simultaneously, the ST1200 is the newest high-performance stick pack machine using state-of-the-art technology.


Max Speed 80 cpm
Bag Size
Min 17 mm x 40 mm (0.67" x 1.57")
Max 100 mm x 200 mm (3.94" x 7.88")

Features

  • Powered film unwind
  • Film slitters and forming tubes - set per bag size
  • Discharge chute

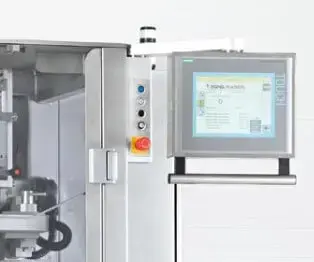

  • Siemens or Allen Bradley control system
  • Automatic film tracking
  • Integrated inner light
  • GMP construction

This machine is designed to pack powders; dense, fine, loose and particulate materials, as well as liquids and gels, into stickpack bags to accommodate different bag shapes including pour spouts, tear notches and easy-open systems. We also offer fully automated cartoning solutions to suit your needs.

Options

  • Straight cut
  • Zigzag cut
  • Round cut
  • Multi-lane volumetric filler, servo auger filler or servo liquid fillers
  • Easy change-over parts and stainless steel storage cart
  • Easy open features like tear notch or microperforation
  • Various seal patterns and shapes
  • Offset back seal
  • Automatic stickpack length adjustment
  • Individual discharge chutes
  • Empty stick detection
  • Empty stick rejection
  • Dust suction nozzles
  • Static elimination
  • Film edge trimming and suction
  • Embossing in the longitudinal seal
  • Stainless steel construction
  • Pharma construction (IQ/OQ)
  • Hot stamp, inkjet, or thermal transfer printer

Specifications

  • Maximum Roll Diameter: 450 mm (17.75")
  • Maximum Roll Width: 1200 mm (47.24")
  • Weight: 1,600 kg (3,525 lbs)
  • Air Pressure: 6 bar (15 CFM at 90 PSI)
  • Power Supply: 10 kVA (480 V, three phase, 60 Hz., 20 AMPS)



Industries

Liquids
Liquids
Powders
Powders
Coffee
Coffee
Medical Devices & Supplies
Medical Devices & Supplies
Contract Packaging
Contract Packaging
Non-Food Products
Non-Food Products
Cannabis
Cannabis

Bag Styles

Stick Pack
Stick Pack
Tetrahedron
Tetrahedron
Three Side Seal
Three Side Seal

Options

Perforation
Perforation
Chain
Chain
Pour Spout
Pour Spout
Rounded
Rounded
Sea Shapes
Sea Shapes
Bottle Shape
Bottle Shape
Various Cut Types
Various Cut Types
