8SD-165

Fill and Seal Bags Up To 165 mm Wide, At Up to 100 BPM

Let's Talk

Overview

Viking 8SD-165 Automatic rotary Premade Pouch Machine

Maximize your packaging efficiency with the Viking 8SD-165, a high-performance two-lane rotary pouch machine designed to fill and seal preformed pouches up to 165mm wide at speeds reaching 100 bags per minute. This versatile system delivers exceptional throughput and quality across a wide range of industries, enhancing your production capabilities and boosting your bottom line.

Key Features

  • Two-lane rotary system processes up to 100 bags per minute
  • Accommodates preformed pouches up to 165mm wide
  • Designed for maximum throughput and consistent quality
  • Versatile application across multiple industries

Specifications

Number of Stations 8
Number of Lanes 2
Maximum Speed Per Minute (dry cycle) 100
Bag Gripping Range (mm) 90-165mm
Maximum Bag Length (mm) 350mm
Electrical Requirements 3-Phase, 480V, Approx. 4 Kw, 60Hz
Compressed Air Approx. 600NL/min, 5~6 kgf/cm2
Specs PDF See Bag Styles Let's Talk

Features

  • 8 stations, dual bags
  • PLC control with touch screen operation
  • Servo-driven Allen Bradley control platform
  • Highly durable welded steel frame
  • Production parameter memory including gripper size, machine speed, sealing temperature, and filling volume
  • Pouch presence detection – no filling, no sealing
  • Bag deflation with wire guide or push bars
  • Automatic deoxidizer feeding station

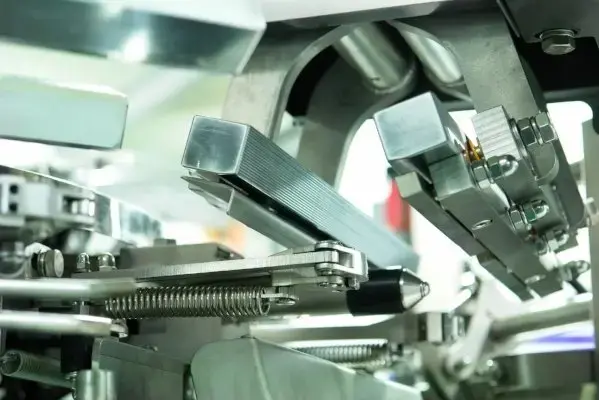

  • Two step sealing process guarantees clean sealing
  • Cooling station for liquid products
  • Intuitive touch screen human interface (HMI)

Max Speed

100 bpm

Bag Size

Min 90 mm W x 120 mm L

Max165 mm W x 350 mm L

Compatible Applications

Bakery icon Bakery
Cereal, Nuts & Snacks icon Cereal, Nuts & Snacks
Fresh Fruit & Vegetables icon Fresh Fruit & Vegetables
Individual Quick Frozen (IQF) icon Individual Quick Frozen (IQF)
Liquids icon Liquids
Non-Food icon Non-Food Products
8SD-165

Options

  • Proprietary Viking robotic pick & place bag infeed system

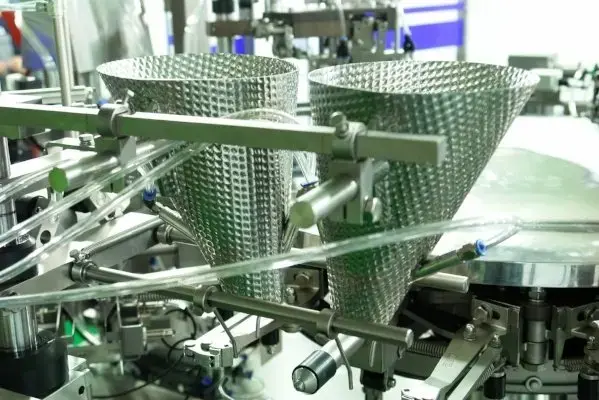

  • Product filling – can be integrated with multi-head scales, volumetric fillers and auger fillers
  • Fully interlocked safety guards
  • Pre Sealing station for liquid or paste
  • Zipper opening device
  • Clean-in-place design
  • Long raised rotary shaft extender for longer bags
  • Extended bag magazine
  • Date coding: emboss, hot stamp, inkjet or thermal transfer
  • Quality control: checkweigher, metal detector, X-ray inspection
  • Dust suction nozzles and dust collector
  • Product settler
  • Bag supporter for heavy fills
  • Ethernet connectivity
  • Washdown structure (IP65 or IP66)
  • Steam or gas flush
  • Rotary running clockwise model
  • Bag rejection system

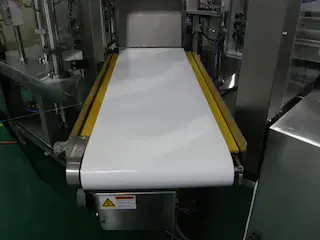

  • Collating discharge conveyor
