FW-300

High-Speed Horizontal Flow Wrapper for Flexible, High-Volume Production

Overview

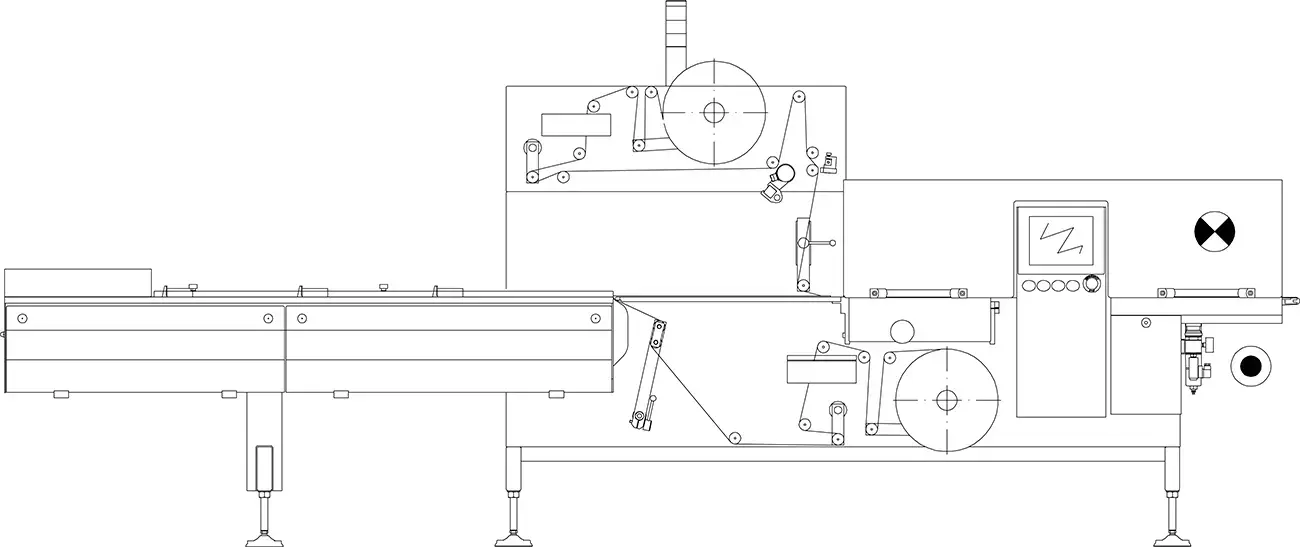

The FW‑300 is a high-speed horizontal flow wrapper designed for versatility and performance. With top and bottom film reel holders, modular stainless steel construction, and servo-driven controls, it delivers speeds up to 500 packages per minute. Ideal for semi- or fully automated lines, the FW‑300 supports multiple packaging formats and fast changeovers. A user-friendly touchscreen interface and low maintenance needs make it a smart choice for high-volume, multi-format production environments.

Key Features

  • Speeds up to 500 packages per minute
  • Modular, cantilevered stainless steel construction
  • Top and bottom film reel holders for flexible film loading
  • Supports 4-side seal packaging formats
  • Servo-driven control with easy, tool-free changeovers
  • 10.4” touchscreen HMI for intuitive operation

Looking for Automated Infeed Options?

To maximize the efficiency and speed of the 300 series flow wrapper, Viking Masek manufactures a variety of automatic infeed options. Whether you have multiple rows of product that need to move to single file, need your product placed into stacks, robotically placed onto the infeed, or something completely custom, Viking Masek will create a solution to fit your production needs, space allowed, and labor reduction needs.

Specifications

Bag width 25 - 610 mm (0.98" - 25.4")
Bag length 50 - 550 mm (1.96" - 21.65")
Weight 1000 - 1500 kg (2205 - 3307 lb)
Air pressure 6 bar (15–18 CFM at 90 PSI)
Power supply 380-440 VAC / 3 Ph / 50-60 HZ

Features

  • Pusher conveyor
  • Top and bottom reel holder
  • Universal forming box
  • Fin longitudinal sealing unit
  • End cutting and welding unit
  • Longitudinal welding module
  • Outfeed conveyor
  • Transmission cabinet
  • 10.4” Touch Screen (HMI)
  • Easy changeover
  • Modular construction
  • Minimal maintenance requirements
  • Automatic film splice
  • Robust stainless steel build

Max Speed

500 bpm

Bag Size

Min 25 x 50 mm (0.98" × 1.96")

Max250 × 550 mm (9.84" × 21.65")

Compatible Applications

Bakery icon Bakery
Candy icon Candy
Cannabis+Food+Beverage icon Cannabis
Food & Beverage
Cannabis+Health+Medical icon Cannabis
Health & Medical
Cereal, Nuts & Snacks icon Cereal, Nuts & Snacks
Cheese icon Cheese
Fresh Fruit & Vegetables icon Fresh Fruit & Vegetables
Individual Quick Frozen (IQF) icon Individual Quick Frozen (IQF)
Meat, Poultry & Fish icon Meat, Poultry & Fish
Medical Devices & Supplies icon Medical Devices & Supplies
Medical Testing Kits icon Medical Testing Kits
Pasta, Beans & Rice  icon Pasta, Beans & Rice
Pet Food & Treats icon Pet Food & Treats
Pills & Capsules icon Pills & Capsules
Powders icon Powders
FW-300

Options

  • Poly configuration for polyethylene films
  • Cold configuration for cold sealing films
  • Box Motion configuration for hermetic sealing
  • Robotic handling for right hand execution
  • Integration with feeders
  • Integration with ancillary equipment
