10S-235

The Ideal Bagger for Applications with Extra Fillers and Options

Let's Talk

Overview

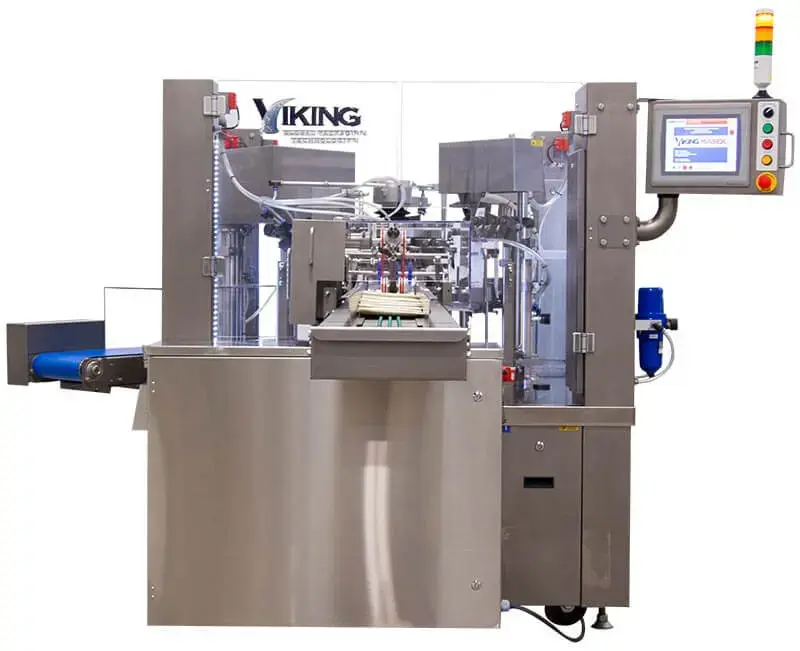

10-Station Automatic rotary Premade Pouch Filler and Sealer that Handles All the Extras

The Viking 10S-235 is a 10-station automatic rotary premade pouch machine built to accommodate extra fillers, accessories, or specialty packaging options without sacrificing speed or performance. Operating at up to 40 cycles per minute, this machine is ideal for complex packaging applications that demand flexibility, reliability, and precision pouch presentation.

Key Features

  • Runs at speeds up to 40 CPM
  • Heavy-duty welded steel frame for enhanced durability
  • Pouch presence detection minimizes product waste
  • Bag deflation system with wire guide or push bars
  • Integrated automatic deoxidizer feeding station

Specifications

Number of Stations 10
Number of Lanes 1
Maximum Speed Per Minute (dry cycle) 50
Bag Gripping Range (mm) 90-235mm
Maximum Bag Length (mm) 350mm
Power Supply 480V / 3 Ph / 60 Hz / 35 A
Compressed Air 21 cfm
Specs PDF See Bag Styles Let's Talk

Features

  • 10 stations, single bag
  • PLC control with touch screen operation
  • Servo-driven Allen Bradley control platform
  • Highly durable welded steel frame
  • Production parameter memory including gripper size, machine speed, sealing temperature, and filling volume
  • Pouch presence detection – no filling, no sealing
  • Bag deflation with wire guide or push bars
  • Automatic deoxidizer feeding station

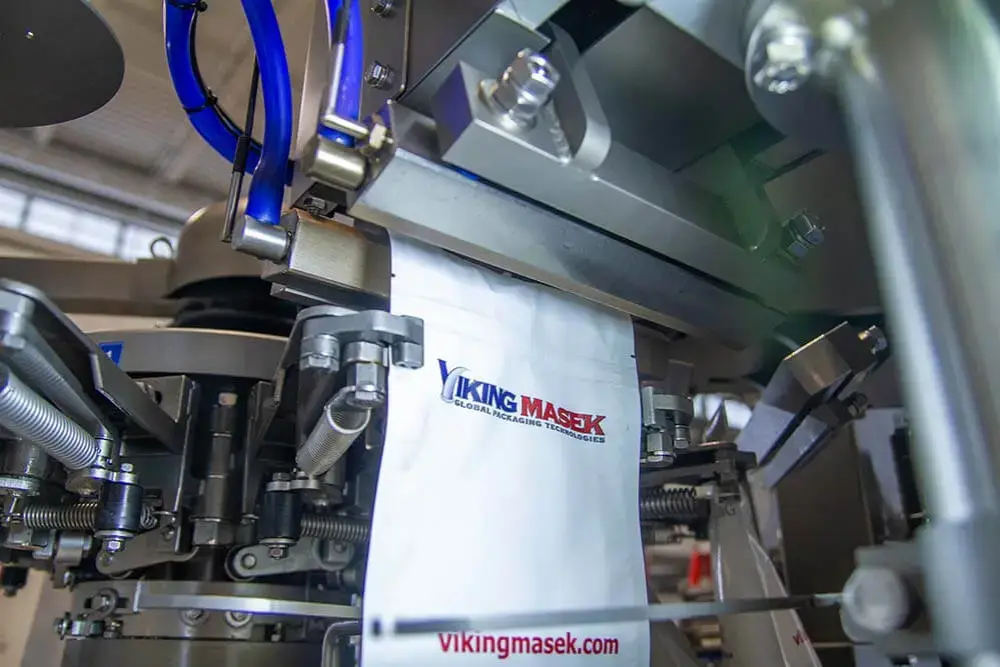

  • Two step sealing process guarantees clean sealing
  • Cooling station for liquid products
  • Intuitive touch screen human interface (HMI)

Max Speed

50 bpm

Bag Size

Min 90 mm W x 120 mm L

Max235 mm W x 350 mm L

Compatible Applications

Candy icon Candy
Cannabis+Health+Medical icon Cannabis
Health & Medical
Cannabis+Food+Beverage icon Cannabis
Food & Beverage
Cereal, Nuts & Snacks icon Cereal, Nuts & Snacks
Cheese icon Cheese
Coffee icon Coffee
Contract Packaging icon Contract Packaging
Fresh Fruit & Vegetables icon Fresh Fruit & Vegetables
Individual Quick Frozen (IQF) icon Individual Quick Frozen (IQF)
Liquids icon Liquids
Meat, Poultry & Fish icon Meat, Poultry & Fish
Medical Devices & Supplies icon Medical Devices & Supplies
Medical Testing Kits icon Medical Testing Kits
Non-Food icon Non-Food Products
Pasta, Beans & Rice icon Pasta, Beans & Rice
Pet Food & Treats icon Pet Food & Treats
Pills & Capsules icon Pills & Capsules
Powders icon Powders
10S-235

Options

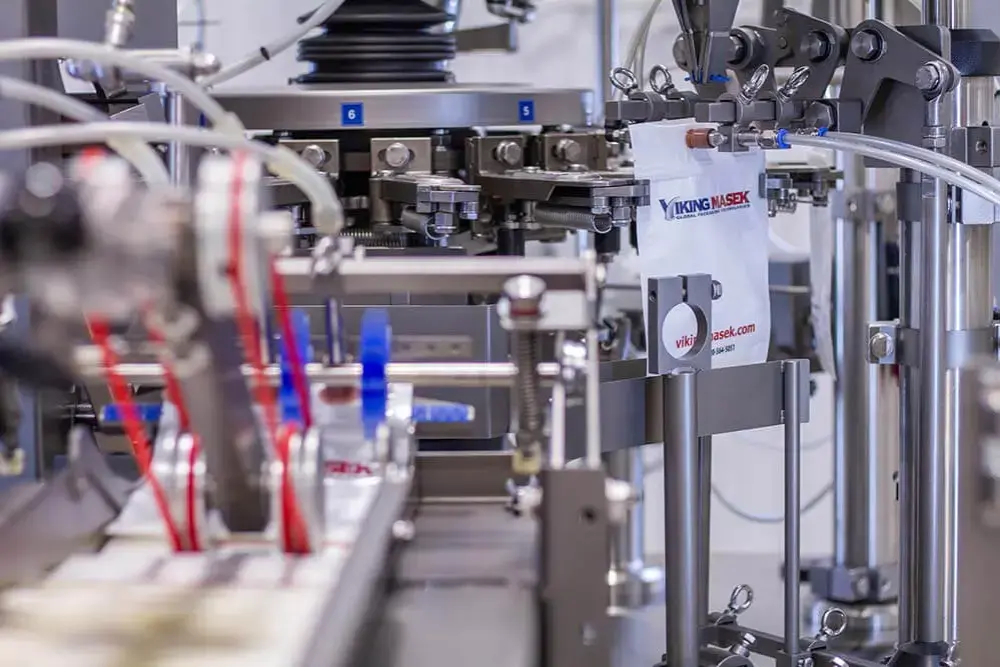

  • Proprietary Viking robotic pick & place bag infeed system

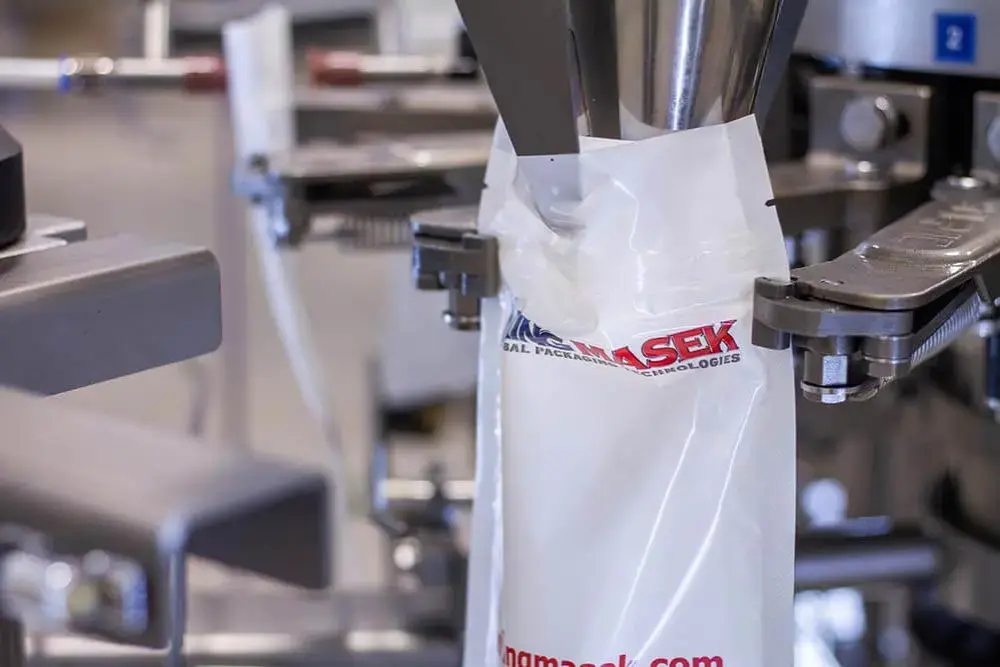

  • Product filling – can be integrated with multi-head scales, volumetric fillers and auger fillers
  • Fully interlocked safety guards
  • Pre Sealing station for liquid or paste
  • Zipper opening device
  • Clean-in-place design
  • Long raised rotary shaft extender for longer bags
  • Extended bag magazine
  • Date coding: emboss, hot stamp, inkjet or thermal transfer
  • Quality control: checkweigher, metal detector, X-ray inspection
  • Dust suction nozzles and dust collector
  • Product settler
  • Bag supporter for heavy fills
  • Ethernet connectivity
  • Washdown structure (IP65 or IP66)

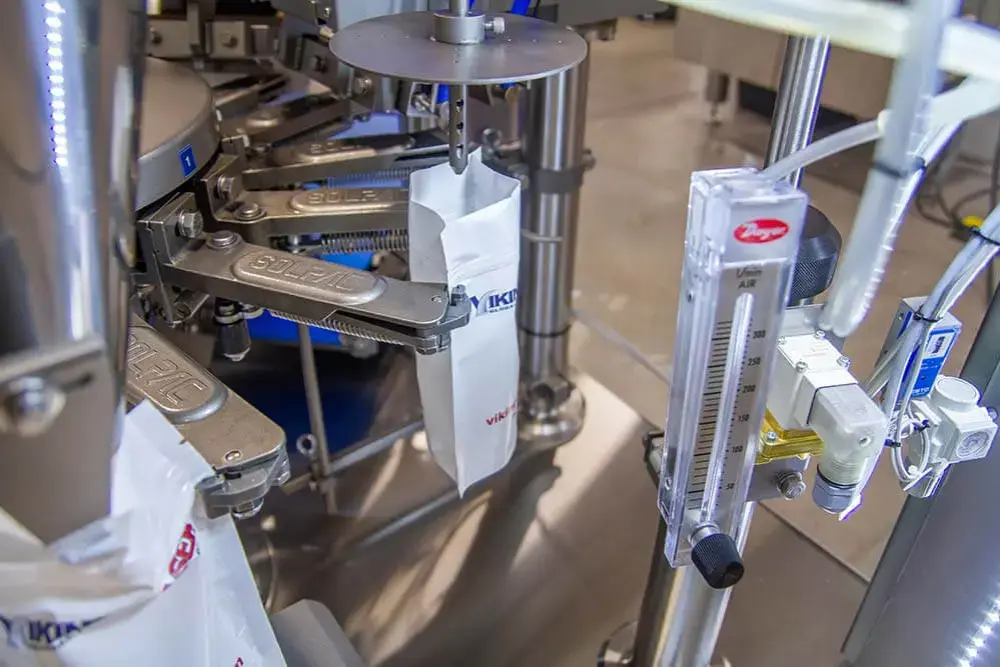

  • Steam or gas flush
  • Rotary running clockwise model
  • Bag rejection system
  • Stand-up discharge
