8S-450

Fill and Seal Premade Pouches At Speeds Up to 40 BPM

Let's Talk

Overview

Easily Package Powders and Food Products in Large-Format Premade Pouches

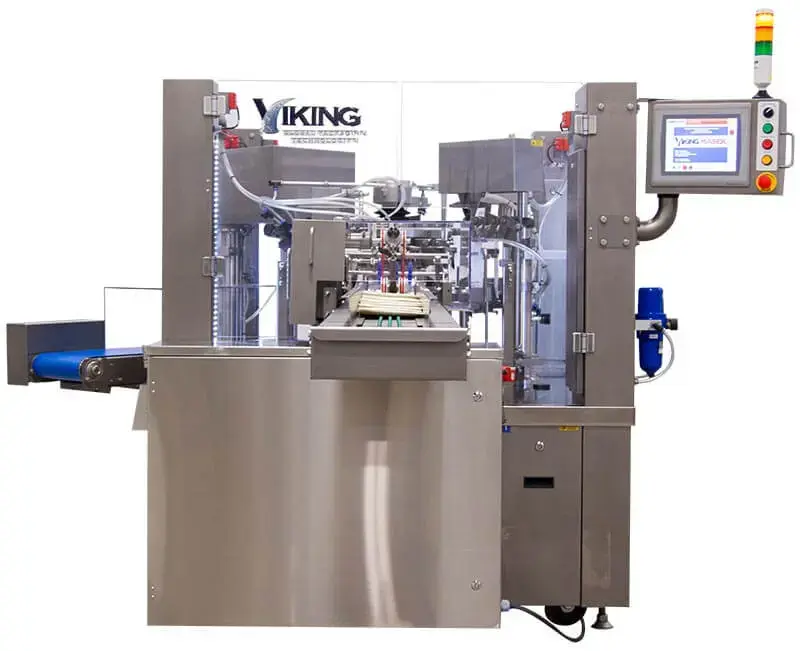

The Viking 8S-450 is a custom, high-capacity, automatic rotary premade pouch machine designed to package powders and food products into pouches up to 500 mm wide at speeds up to 40 cycles per minute. With powerful automation, rugged construction, and extensive customization options, it delivers the performance and flexibility required for demanding, large-format pouch packaging.

Key Features

  • 8-station rotary system for single-bag operation
  • Fills and seals pouches up to 500 mm wide at up to 40 BPM

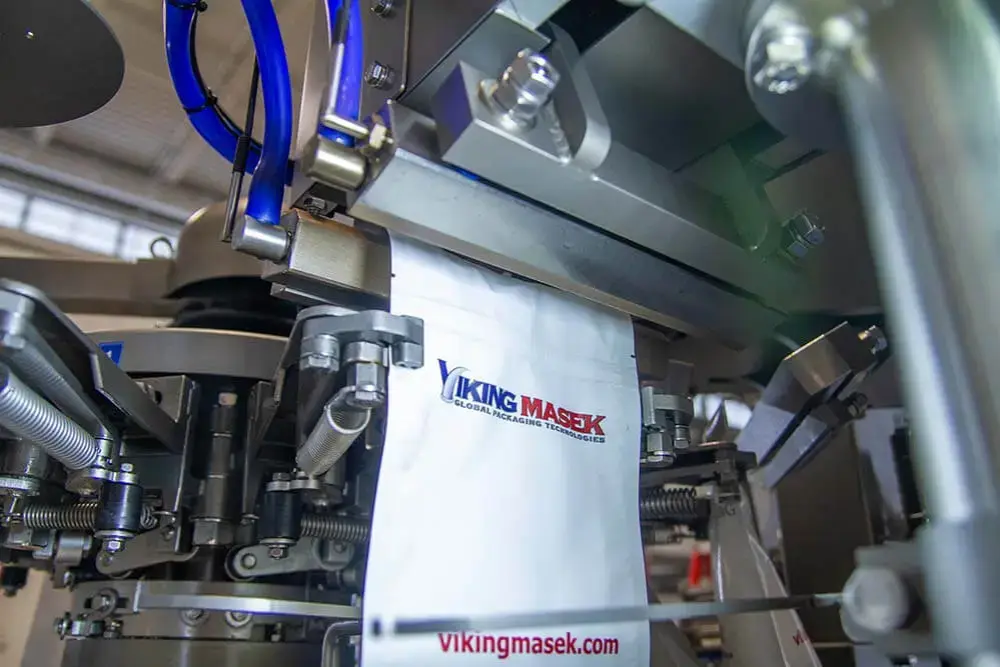

  • Two-step sealing process ensures consistent, high-integrity seals
  • Integrated cooling station supports liquid product packaging

Specifications

Number of Stations 8
Number of Lanes 1
Maximum Speed Per Minute (dry cycle) 40
Bag Gripping Range (mm) 280-450mm
Maximum Bag Length (mm) 500mm
Power Supply 480V / 3 Ph / 60 Hz / 35 A
Compressed Air 21 cfm
Specs PDF See Bag Styles Let's Talk

Features

  • 8 stations, single bag
  • PLC control with touch screen operation
  • Servo-driven Allen Bradley control platform
  • Highly durable welded steel frame
  • Production parameter memory including gripper size, machine speed, sealing temperature, and filling volume
  • Pouch presence detection – no filling, no sealing
  • Bag deflation with wire guide or push bars
  • Automatic deoxidizer feeding station
  • Two step sealing process guarantees clean sealing
  • Cooling station for liquid products
  • Intuitive touch screen human interface (HMI)

Max Speed

40 bpm

Bag Size

Min 280 mm W x 240 mm L

Max450 mm W x 500 mm L

Compatible Applications

Candy icon Candy
Cannabis+Food+Beverage icon Cannabis
Food & Beverage
Cannabis+Health+Medical icon Cannabis
Health & Medical
Cereal, Nuts & Snacks icon Cereal, Nuts & Snacks
Cheese icon Cheese
Coffee icon Coffee
Contract Packaging icon Contract Packaging
Fresh Fruit & Vegetables icon Fresh Fruit & Vegetables
Individual Quick Frozen (IQF) icon Individual Quick Frozen (IQF)
Liquids icon Liquids
Meat, Poultry & Fish icon Meat, Poultry & Fish
Medical Devices & Supplies icon Medical Devices & Supplies
Medical Testing Kits icon Medical Testing Kits
Non-Food icon Non-Food Products
Pasta, Beans & Rice icon Pasta, Beans & Rice
Pet Food & Treats icon Pet Food & Treats
Pills & Capsules icon Pills & Capsules
Powders icon Powders
8S-450

Options

  • Proprietary Viking robotic pick & place bag infeed system
  • Product filling – can be integrated with multi-head scales, volumetric fillers and auger fillers
  • Fully interlocked safety guards
  • Pre Sealing station for liquid or paste
  • Zipper opening device
  • Clean-in-place design
  • Long raised rotary shaft extender for longer bags
  • Extended bag magazine
  • Date coding: emboss, hot stamp, inkjet or thermal transfer
  • Quality control: checkweigher, metal detector, X-ray inspection
  • Dust suction nozzles and dust collector
  • Product settler
  • Bag supporter for heavy fills
  • Ethernet connectivity
  • Washdown structure (IP65 or IP66)

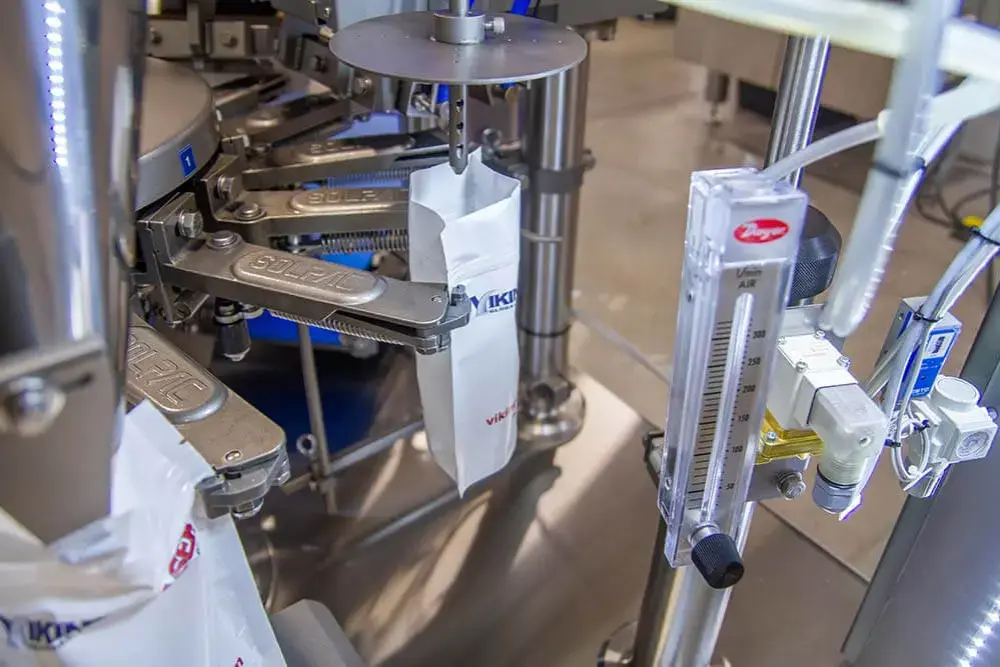

  • Steam or gas flush
  • Rotary running clockwise model
  • Bag rejection system
  • Stand-up discharge
