8SG-200A

Automatic Rotary Premade Pouch Filler and Two-Step Sealer for a Variety of Applications

Let's Talk

Overview

Effortless Packaging of Powders, Food Products, and Quad-Style Bags

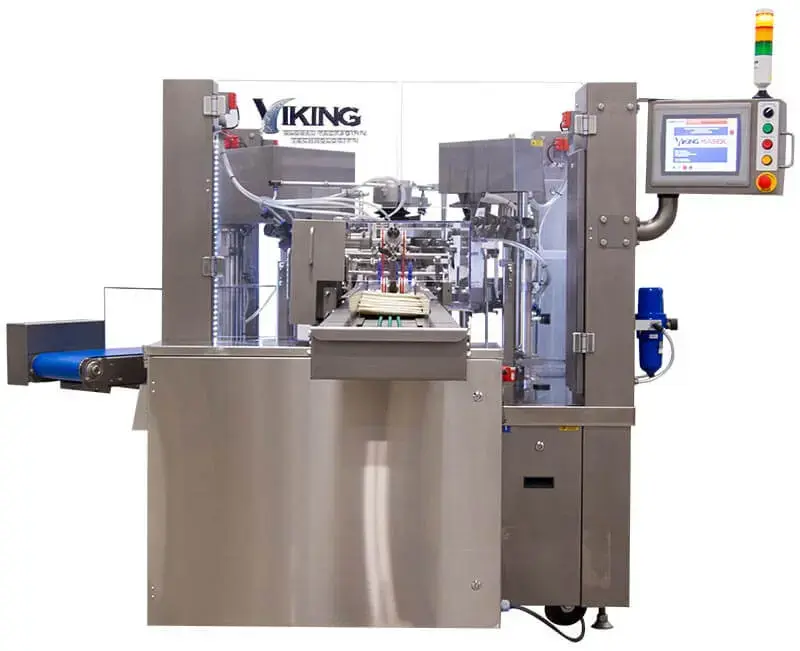

The Viking 8SG-200A is a robust, closed-design automatic rotary premade pouch machine engineered for powders, food products, and quad-style bags. Featuring 8 stations, a two-step sealing process, and advanced features like bag deflation and cooling, this system delivers clean seals and consistent performance on pouches from 100 mm-200 mm, at speeds up to 35 BPM.

Key Features

  • 8 stations, single bag
  • PLC control with touch screen operation
  • Highly durable closed frame for added structural integrity
  • Bag deflation with wire guide or push bars
  • Two-step sealing process ensures clean sealing

Specifications

Number of Stations 8
Number of Lanes 1
Maximum Speed Per Minute (dry cycle) 35
Bag Gripping Range (mm) 100-200mm
Maximum Bag Length (mm) 425mm (500mm with extender)
Power Supply 480V / 3 Ph / 60 Hz / 35 A
Compressed Air 25-30 cfm
Specs PDF See Bag Styles Let's Talk

Features

  • 8 stations, single bag
  • PLC control with touch screen operation
  • Servo-driven Allen Bradley Control platform
  • Highly durable welded steel frame
  • Production parameter memory including gripper size, machine speed, sealing temperature, and filling volume
  • Pouch presence detection – no filling, no sealing
  • Bag deflation with wire guide or push bars

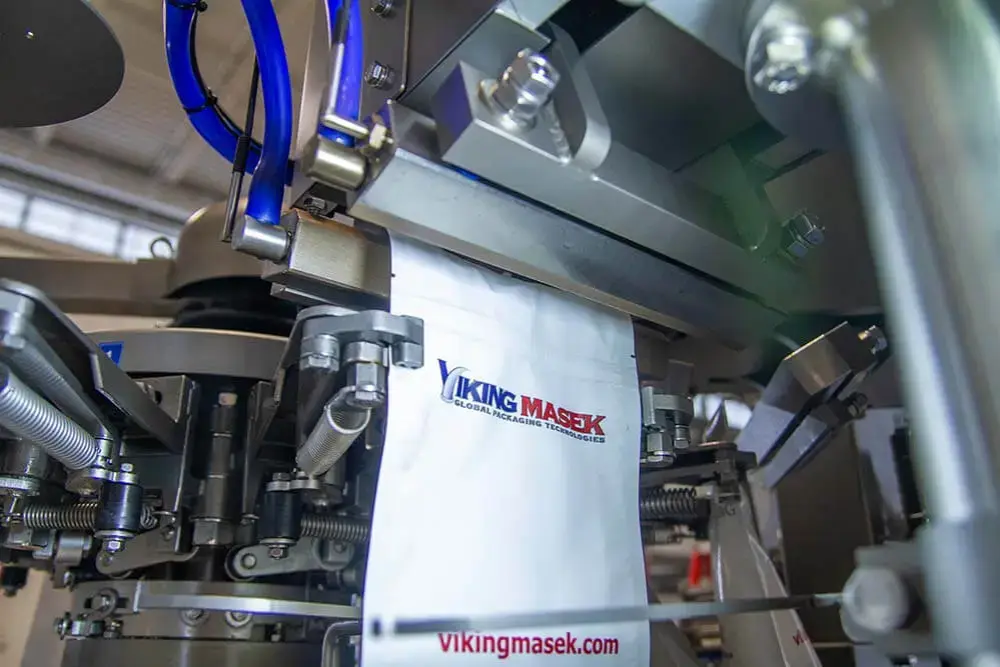

  • Two step sealing process guarantees clean sealing
  • Cooling station
  • Intuitive touch screen human interface (HMI)

Max Speed

35 bpm

Bag Size

Min 100 mm W x 150 mm L

Max200 mm W x 575 mm L

Compatible Applications

Candy icon Candy
Cannabis+Food+Beverage icon Cannabis
Food & Beverage
Cannabis+Health+Medical icon Cannabis
Health & Medical
Cereal, Nuts & Snacks icon Cereal, Nuts & Snacks
Cheese icon Cheese
Coffee icon Coffee
Contract Packaging icon Contract Packaging
Individual Quick Frozen (IQF) icon Individual Quick Frozen (IQF)
Liquids icon Liquids
Meat, Poultry & Fish icon Meat, Poultry & Fish
Medical Devices & Supplies icon Medical Devices & Supplies
Medical Testing Kits icon Medical Testing Kits
Non-Food icon Non-Food Products
Pasta, Beans & Rice icon Pasta, Beans & Rice
Pet Food & Treats icon Pet Food & Treats
Pills & Capsules icon Pills & Capsules
Powders icon Powders
8SG-200A

Options

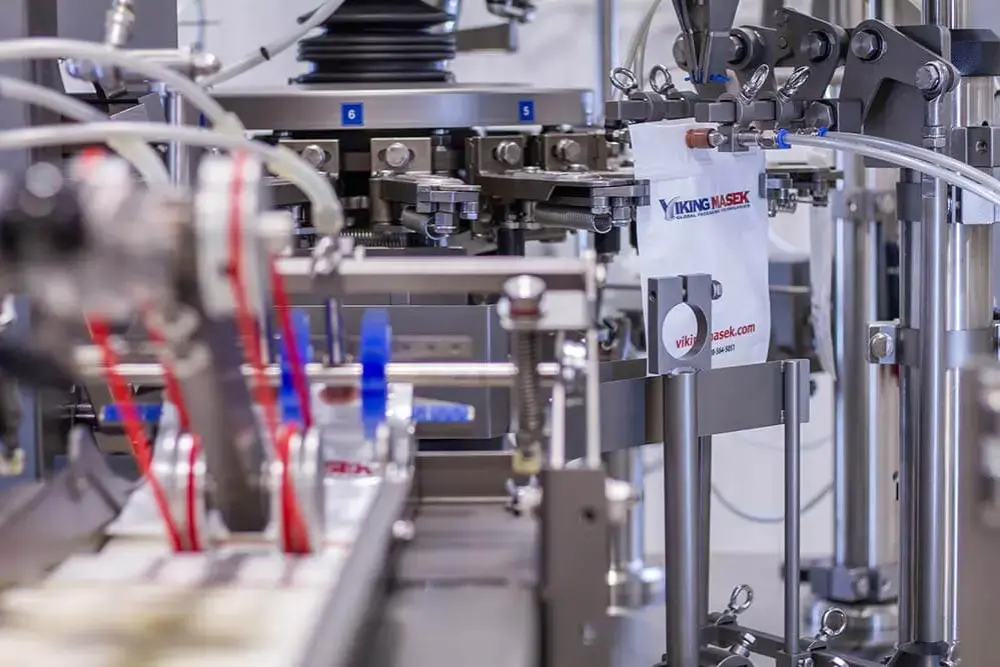

  • Proprietary Viking robotic pick & place bag infeed system
  • Product filling – can be integrated with multi-head scales, volumetric fillers and auger fillers
  • Fully interlocked safety guards
  • Long raised rotary shaft extender for longer bags
  • Extended bag magazine
  • Date coding: emboss, hot stamp, inkjet or thermal transfer
  • Quality control: checkweigher, metal detector, X-ray inspection
  • Dust suction nozzles and dust collector
  • Product settler
  • Bag supporter for heavy fills
  • Ethernet connectivity

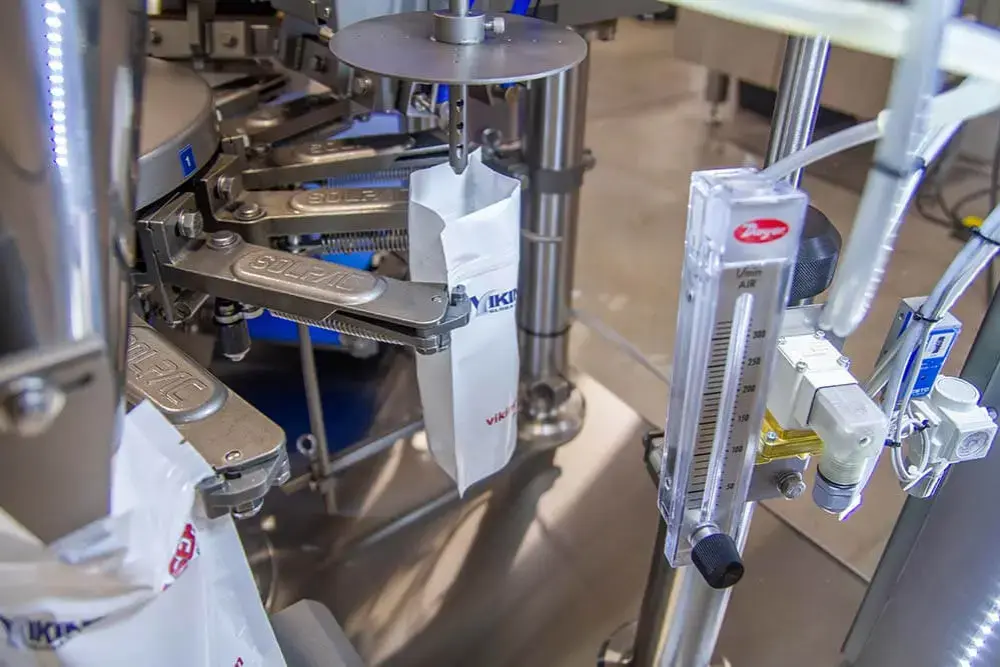

  • Gas flush
  • Bag rejection system

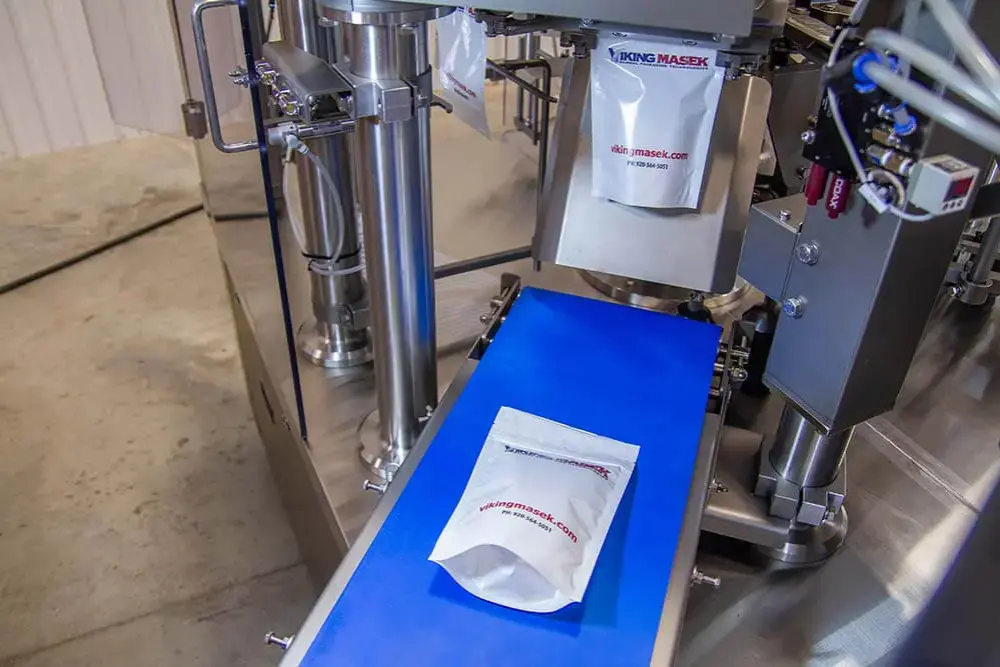

  • Stand-up discharge
