8S-235

Fill and Seal Bags Up to 235 mm Wide — and Standcap Pouch Pouches

Let's Talk

Overview

Efficiently Fill and Seal Premade and Standcap Pouch Pouches

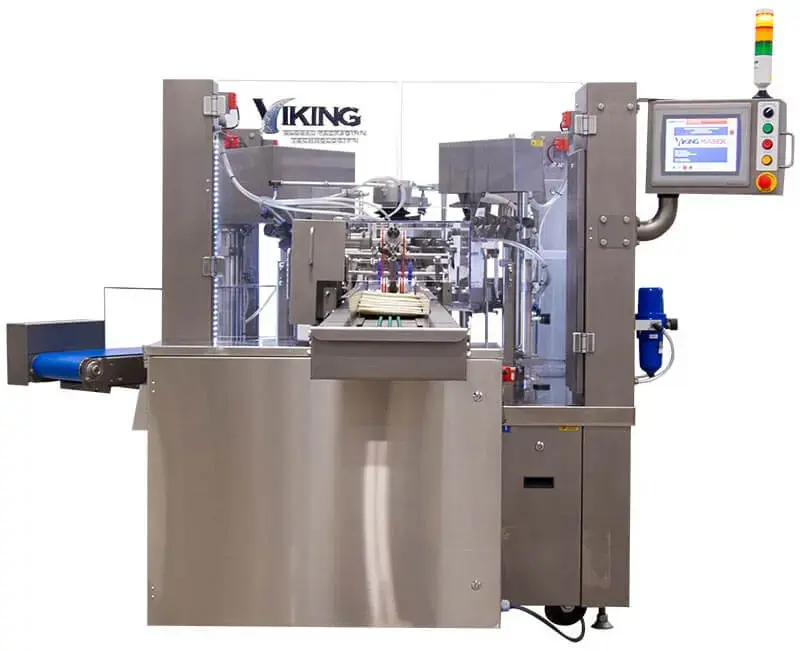

The Viking 8S-235 is our most popular simplex automatic rotary premade pouch machine, known for its versatility, speed, and Standcap Pouch pouch compatibility. With 8 stations and speeds up to 60 cycles per minute, it handles a wide range of pouch styles up to 235 mm wide, making it a go-to solution for efficient, high-quality packaging of both dry and liquid products.

Key Features

  • 8-station rotary system for single-bag operation
  • Handles pouch widths up to 235 mm at speeds up to 60 CPM
  • Automatic deoxidizer station for freshness
  • Cooling station ideal for liquid product applications

Specifications

Number of Stations 8
Number of Lanes 1
Maximum Speed Per Minute (dry cycle) 60
Bag Gripping Range (mm) 90-235mm
Maximum Bag Length (mm) 350mm (500mm with extender)
Power Supply 480V / 3 Ph / 60 Hz / 35 A
Compressed Air 21 cfm
Specs PDF See Bag Styles Let's Talk

Features

  • 8 stations, single bag
  • PLC control with touch screen operation
  • Servo-driven Allen Bradley control platform
  • Highly durable welded steel frame
  • Production parameter memory including gripper size, machine speed, sealing temperature, and filling volume
  • Pouch presence detection – no filling, no sealing
  • Bag deflation with wire guide or push bars
  • Automatic deoxidizer feeding station

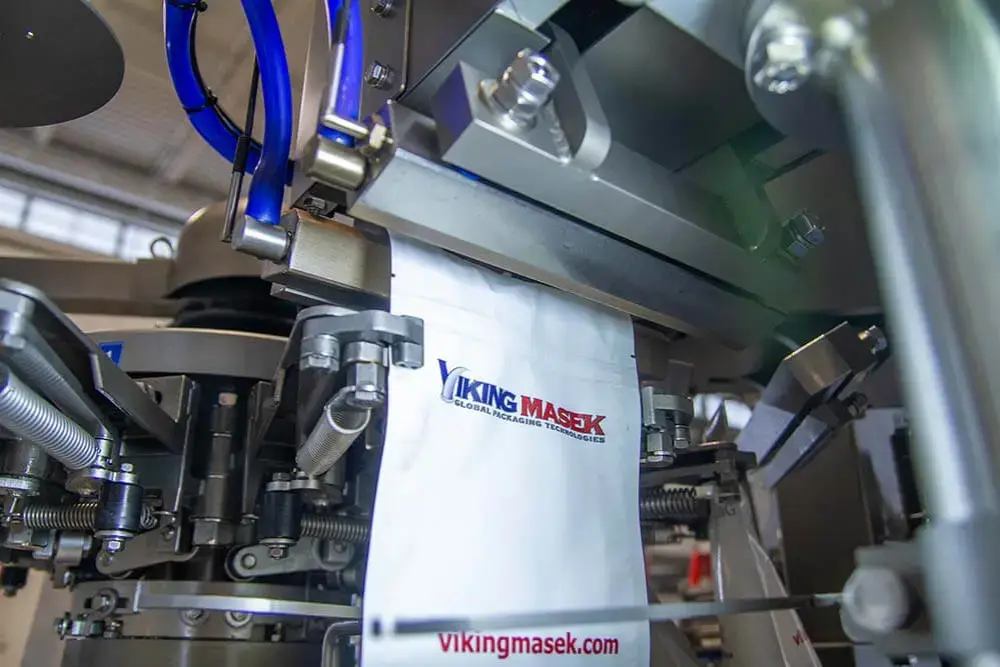

  • Two step sealing process guarantees clean sealing
  • Cooling station for liquid products
  • Intuitive touch screen human interface (HMI)

Max Speed

60 bpm

Bag Size

Min 90 mm W x 120 mm L

Max235 mm W x 350 mm L

Compatible Applications

Bakery icon Bakery
Candy icon Candy
Cannabis+Food+Beverage icon Cannabis
Food & Beverage
Cannabis+Health+Medical icon Cannabis
Health & Medical
Cereal, Nuts & Snacks icon Cereal, Nuts & Snacks
Cheese icon Cheese
Coffee icon Coffee
Fresh Fruit & Vegetables icon Fresh Fruit & Vegetables
Individual Quick Frozen (IQF) icon Individual Quick Frozen (IQF)
Liquids icon Liquids
Meat, Poultry & Fish icon Meat, Poultry & Fish
Medical Devices & Supplies icon Medical Devices & Supplies
Medical Testing Kits icon Medical Testing Kits
Non-Food icon Non-Food Products
Pasta, Beans & Rice icon Pasta, Beans & Rice
Pet Food & Treats icon Pet Food & Treats
Pills & Capsules icon Pills & Capsules
Powders icon Powders
8S-235

Options

  • Standcap Pouch pouch configuration

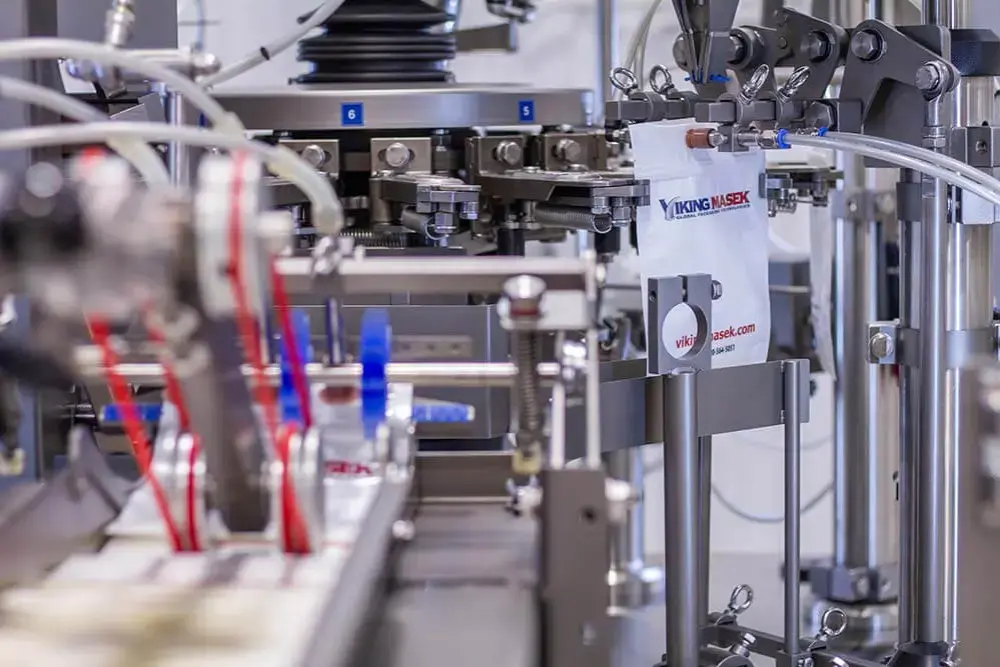

  • Proprietary Viking robotic pick & place bag infeed system

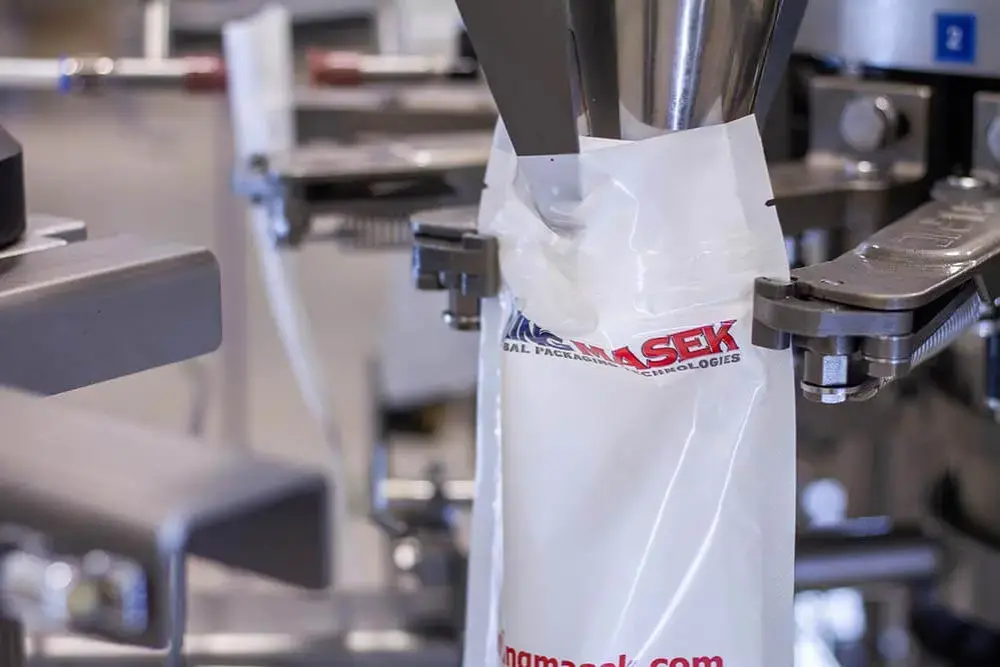

  • Product filling – can be integrated with multi-head scales, volumetric fillers and auger fillers
  • Fully interlocked safety guards
  • Pre Sealing station for liquid or paste
  • Zipper opening device
  • Clean-in-place design
  • Long raised rotary shaft extender for longer bags
  • Extended bag magazine
  • Date coding: emboss, hot stamp, inkjet or thermal transfer
  • Quality control: checkweigher, metal detector, X-ray inspection
  • Dust suction nozzles and dust collector
  • Product settler
  • Bag supporter for heavy fills
  • Ethernet connectivity
  • Washdown structure (IP65 or IP66)

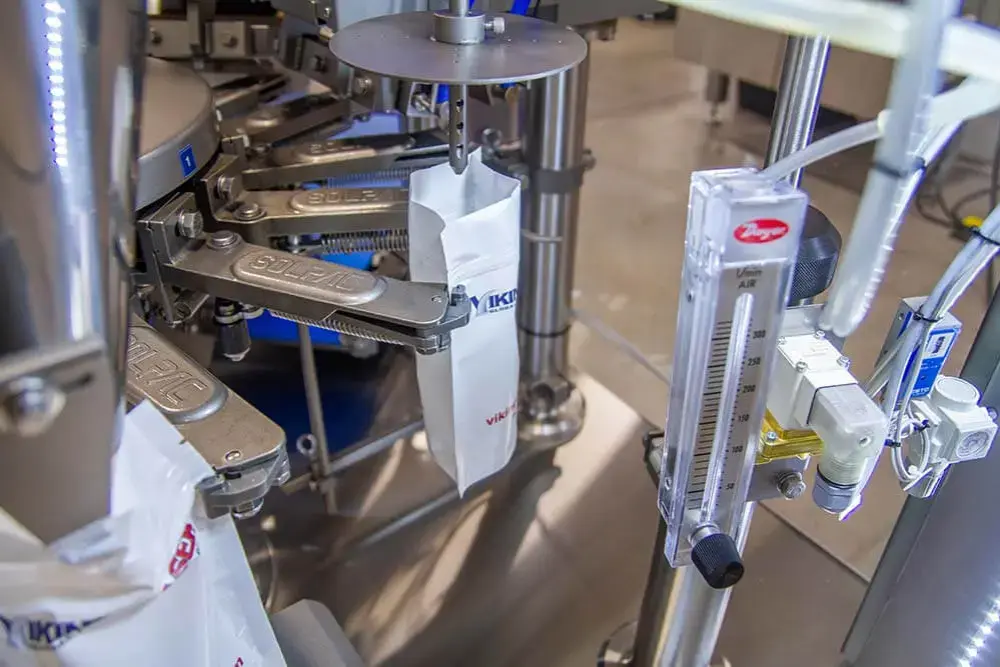

  • Steam or gas flush
  • Rotary running clockwise model
  • Bag rejection system
  • Stand-up discharge
