M250 BIB

Bag-in-Bag VFFS for Fractional Coffee, Candy, or Snack Packs

Overview

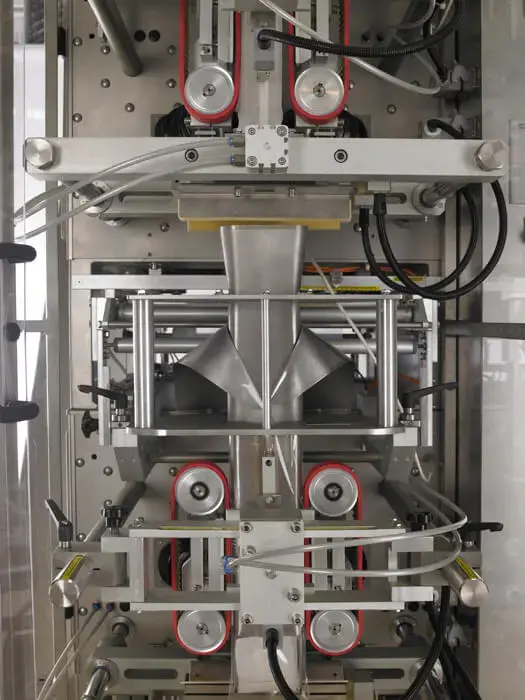

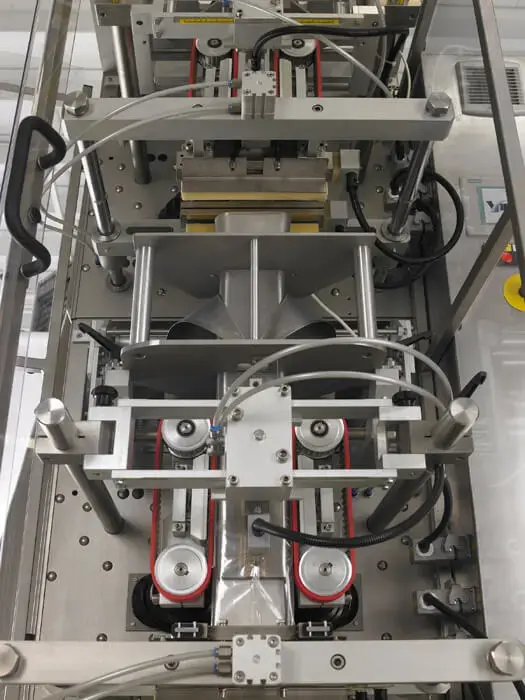

M250 Bag-in-Bag VFFS Machine Provides High-Speed Fractional Packs

The M250 Bag-in-Bag VFFS machine offers a rugged, high-speed solution for packaging fractional packs of coffee, candy, snacks, and more. By combining the proven performance of the M250 with the ability to place smaller inner bags into a larger overwrap bag, this system supports up to 100 cycles per minute and creates display-ready pillow-style bags for retail environments.

Key Features

  • Combines inner and overwrap bagging in one operation
  • Packs at speeds up to 100 cycles per minute
  • Handles bag sizes from 70 x 80 mm to 200 x 250 mm
  • Produces pillow-style VFFS bags with hole or euro slots for hanging

Specifications

Maximum Roll Diameter 400 mm (15.75")
Maximum Roll Width 400 mm (15.75")

Features

  • Bag-in-bag configuration
  • Robust, stainless steel frame
  • Enclosed, mechanical direct drive jaw actuation
  • Siemens or Allen Bradley controls
  • Off-the-shelf components
  • Minimal maintenance requirements
  • Short film path
  • No tool changeover
  • Self-centering pull belts
  • Automatic film tracking
  • VFD powered film unwind
  • Quick film splice table
  • Product stagers
  • End-seal cooling air
  • Bag deflators
  • Photo eye and encoder
  • Tri-fold guard door
  • Jaw obstruction detection
  • Runs most film structures
  • Storage for 100 product recipes
  • Intuitive touch screen human interface (HMI)

Max Speed

100 bpm

Bag Size

Min 70 mm x 80 mm (2.76"x 3.15")

Max200mm x 250mm (7.87" x 9.84")

Compatible Applications

Bakery icon Bakery
Candy icon Candy
Cannabis+Food+Beverage icon Cannabis
Food & Beverage
Cereal, Nuts & Snacks icon Cereal, Nuts & Snacks
Cheese icon Cheese
Coffee icon Coffee
Fresh Fruit & Vegetables icon Fresh Fruit & Vegetables
Individual Quick Frozen (IQF) icon Individual Quick Frozen (IQF)
Meat, Poultry & Fish icon Meat, Poultry & Fish
Non-Food icon Non-Food Products
Pasta, Beans & Rice  icon Pasta, Beans & Rice
Powders icon Powders
M250 BIB

Options

  • Flat bottom bag assembly
  • Washdown construction
  • Vacuum pull belts
  • Automatic film tracking
  • Fold-down/tape-down unit
  • Hole punch (Euro slot and round)
  • Load shelf
  • Product settler
  • Gas flush
  • Static elimination
  • Degassing valve applicator
  • Tear notch
  • Remote diagnostics
  • In-feed and take-away conveyors
  • Integration with a variety of fillers, printers, metal detectors, label applicators and checkweighers
