S650

Versatile Bulk Bag Packaging that Stacks Cleanly and Easily

Let's Talk

Overview

S650 Heavy-Duty VFFS Machine Automation Cuts Costs, Increases Quality

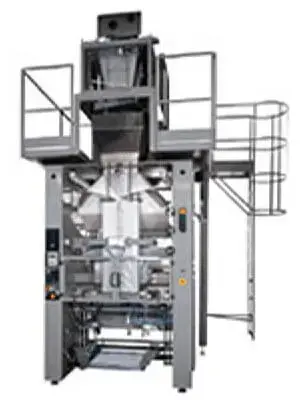

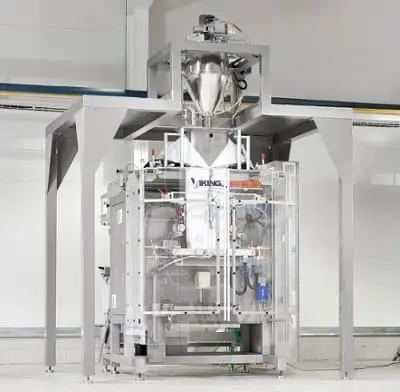

The Viking Masek S650 is a heavy-duty VFFS solution designed specifically for bulk bag packaging. Built for performance, it handles large-format bags of powders, wood chips, soil, grains, and more with seamless precision. Offering a full ecosystem of automation — from fillers and mezzanines to bag compression and pallet-packing — the S650 delivers clean stacks, consistent seals, and major cost savings by eliminating the need for sewn or hand-sealed bags.

Key Features

  • Ideal for bulk packaging of dry and flowable products
  • Supports fillers, compression units, mezzanines, and palletizing equipment
  • Produces large bags that stack cleanly and efficiently on pallets
  • Eliminates the need for sewn or manually sealed bags

Specifications

Maximum Roll Diameter 500 (19.7")
Maximum Roll Width 1,330 (52.36")
Weight 1,600 kg (3,525 lbs)
Air Pressure 6 bar (16-25 CFM at 90 PSI)
Power Supply 16.5 kVA (480 V, three phase, 50/60 Hz., 20 AMPS)
Specs PDF See Bag Styles Let's Talk

Features

  • Robust, stainless steel frame
  • Siemens or Allen Bradley control system
  • Enclosed, servo-drive jaw actuation
  • Quiet running speeds up to 50 cycles per minute
  • Off-the-shelf components
  • Minimal maintenance requirements
  • Short film path
  • No tool change-over
  • Self-centering pull belts
  • Automatic film tracking

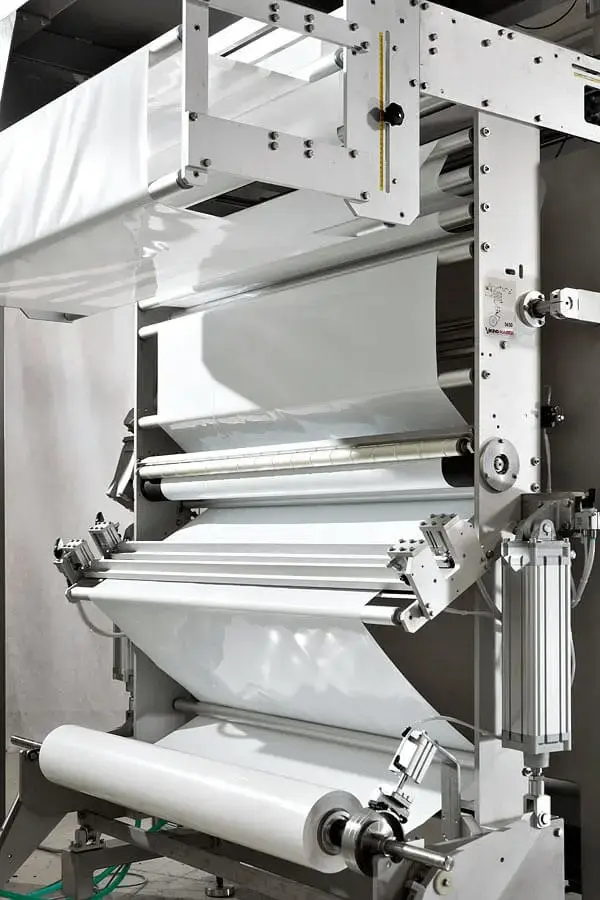

  • VFD powered film unwind
  • Quick film splice table
  • Product stagers
  • End-seal cooling air
  • Bag deflators
  • Photo-eye and encoder
  • Double guard door
  • Automatic machine stop
  • Jaw obstruction detection
  • Film reel lifting unit
  • Runs most film structures
  • Storage for 100 product recipes
  • Intuitive touch screen human interface (HMI)

Max Speed

50 bpm

Bag Size

Min 250 mm × 150 mm (9.84" × 6“)

Max650 mm × 1,000 mm (25.6" × 39.37")

Compatible Applications

Candy icon Candy
Cereal, Nuts & Snacks icon Cereal, Nuts & Snacks
Fresh Fruit & Vegetables icon Fresh Fruit & Vegetables
Individual Quick Frozen (IQF) icon Individual Quick Frozen (IQF)
Non-Food icon Non-Food Products
Pasta, Beans & Rice icon Pasta, Beans & Rice
Pet Food & Treats icon Pet Food & Treats
Powders icon Powders
S650

Options

  • Ultrasonic sealing jaws
  • Quad seal bag assembly
  • Flat bottom bag assembly
  • Impulse sealing for poly film structures
  • Integration with variety of fillers, printers, metal detectors, label applicators, and checkweighers
  • Washdown IP66 construction
  • Atex explosion-proof construction
  • Vacuum pull belts
  • Fold-down/tape-down unit
  • Hole punch (Euroslot and Round)
  • Load shelf
  • Product settler
  • Gas flush
  • Static elimination
  • Tear notch
  • Degassing valve applicator
  • In-feed and take-away conveyors
  • Remote diagnostics
  • Zipper applicator
